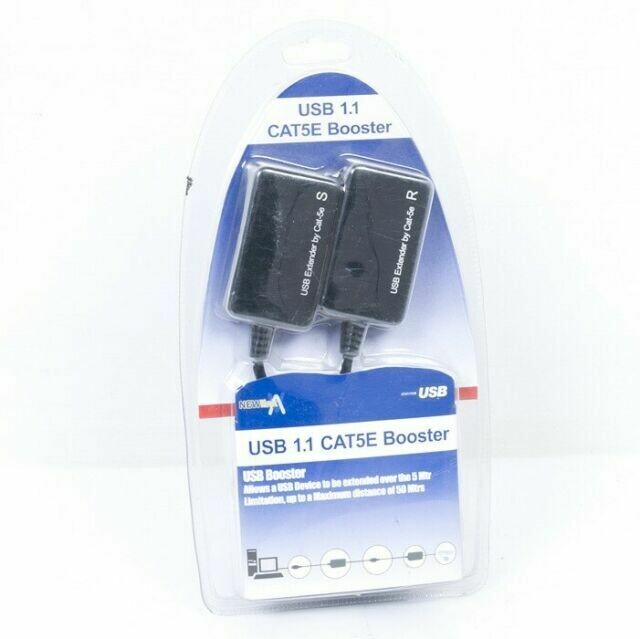

NewLink USB 1.1 Cat5E Booster

NewLink USB 1.1 Cat5E Booster

Product details

• USB Booster Allows a USB device to be extended over the 5m limitation, up to a maximum distance of 50m
• Used on USB webcams for security applications, USB barcode scanners from a central computer, extend a mouse and keyboard and more
• Compliant with standard specifications of USB 1.1
• Patented ASIC's (Application specific integrated circuits) build up
• Embedded USB transceivers at both ends to prevent signal loss
• 10/100 Base- T ethernet interfaces for ease extension up to 50m
• local and remote units supplies
• No additional drivers needed
• System requirement's: Windows 2000/XP/Vista and above
• IBM compatible PC with 233MHz Pentium or faster
• Macintosh OS 9.x or higher
• PowerMac G3 or G4, PowerBook G3 or G4 or iBook
• 64MB of RAM or more
• Available USB port
• In box: Local unit with 30cm of cable and remote unit with 30cm of cable
• Master unit: Upstream port: USB Type A male, Downstream port: RJ45 jack
• Remote Unit: Upstream port USB Type A Female, Downstream port: RJ45 Jack
• Unit cable length 1.0 feet
• Interconnecting cable: standard Cat 5/5E/6 network cable
• Max cable length: 150 feet
