iGuzzini X188.0 2-way junction connector - IP68

Accessory code

X188

Wired DMX

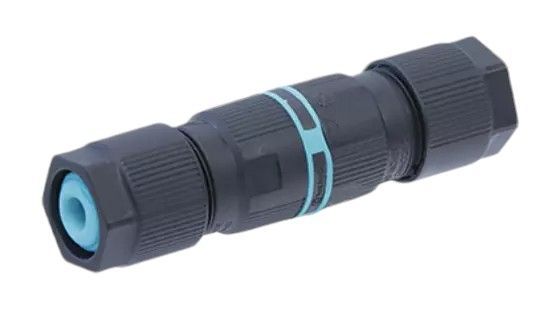

X188: 2-way junction connector - IP68

Technical description:

IP68 2-way cable joiner with internal 4-pole terminals suitable for cables with a cross-section of Ø=0.5÷4mm2. Made of PA66 plastic (polyamide, GWT 960°C). Complete with rubber pads for a single cable with a diameter of Ø=2.5÷12mm and rubber pads for a double cable with a diameter of Ø=2.5÷4,5mm: the latter type of pad, when used with Underscore Inout, allows 2 cables exiting the connector to be connected.

Colour:

Indeterminate (00)

Weight (Kg):

0.03

IK10

EAC
